Details

---

KMS-617
Shielding Gas: 75%Ar+25%He
KMS-617 is 53%Ni-23%Cr-12%Co-9%Mo-1%Fe alloy. Excellent mechanical properties at high temperature, oxidization and corrosion resistance

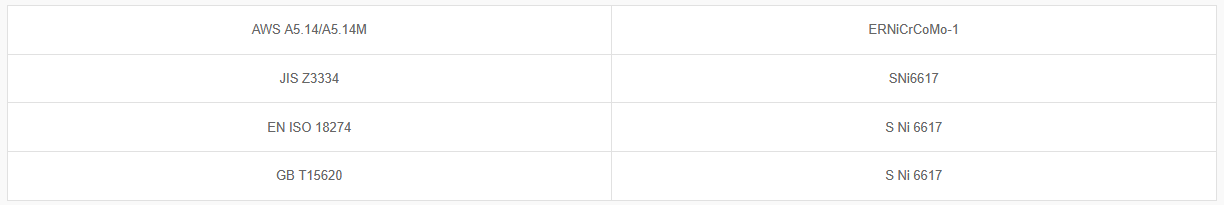

Classification


Application and Features

• KMS-617 is 53%Ni-23%Cr-12%Co-9%Mo-1%Fe alloy
• Excellent mechanical properties at high temperature, oxidization and corrosion resistance
• Suitable for welding Inconel 617, Inconel 600, 601 and Incoloy 800 HT
• Ideal for welding the engine components in aerospace industry, after burners, turbine seals; heat treating equipment and many other high temperature service applications

Welding Position

Welding Instruction

• Clean surface of base metal before welding
• Heat input should be controlled as low as possible
• For other instructions, please refer to Appendix B

Application
- Ideal for welding the engine components in aerospace industry, after burners, turbine seals; heat treating equipment and many other high temperature service applications

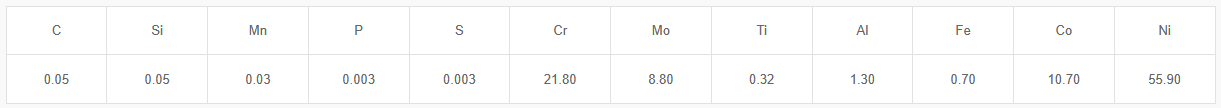

Typical Chemical Composition of Weld Metal (wt%)

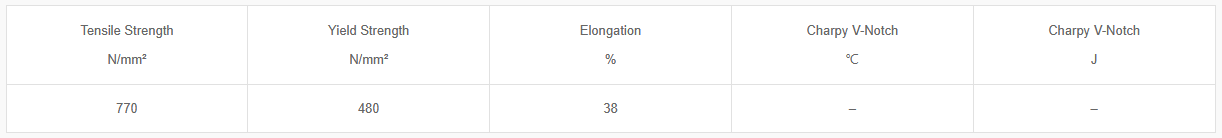

Typical Mechanical Properties of Weld Metal

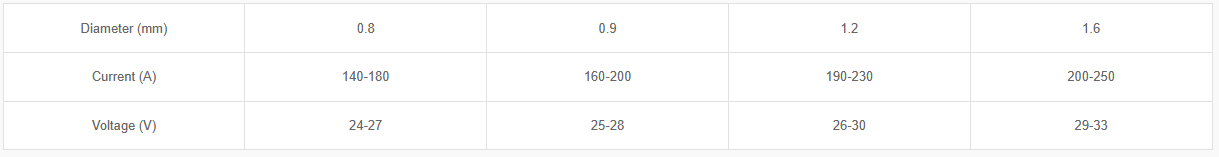

Size and Suggested Operating Range (DC+)
