Details

---

KFW-310
Shielding Gas: 100%CO₂/Ar+20%CO₂
Weld deposit is 19.5% Cr-10% Ni, which is suitable for welding 18% Cr-8% Ni stainless steel (AISI 301、302、304、305、308)

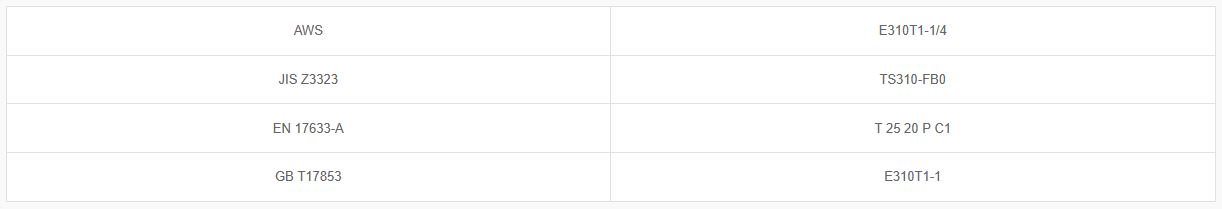

Classification


Application and Features

• Weld deposit is 19.5% Cr-10% Ni, which is suitable for welding 18% Cr-8% Ni stainless steel (AISI 301、302、304、305、308)
• It provides excellent weldability and crack resistance due to proper ferrite contents in the weld metal
• Stable arc, good slag removal, and easy control of weld puddle, low spatters, X-ray quality welds and good penetration

Welding Position


Welding Instruction

- For other instructions, please refer to Appendix D
- For extra information, please refer to Appendix F
- Use Ar blend with 1~2%O2 for high current, spray transfer welding
- Use Ar blend with 1~2%CO2 for low current, short-circuit transfer welding

Application
- It is suitable for welding 18% Cr-8% Ni stainless steel (AISI 301、302、304、305、308)

Typical Chemical Composition of  Weld Metal (wt%) (Shielding Gas: CO₂)

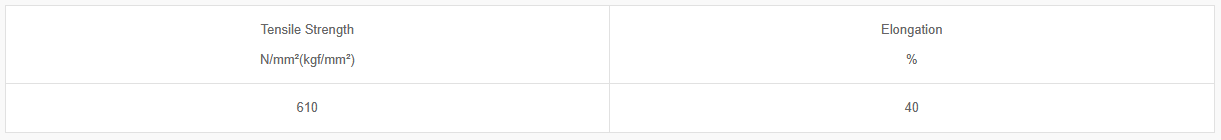

Typical Mechanical Properties of Weld Metal (Shielding Gas: CO₂)

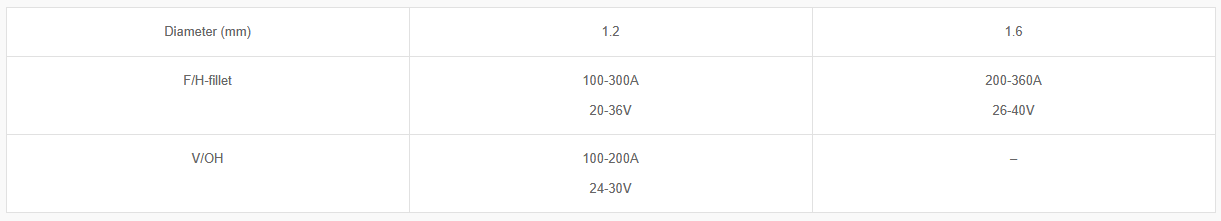

Size and Suggested Operating Range (DC+)
