Details

---

KTS-309LMo
Shielding Gas: 100% Ar
KTS-309LMo is a low-carbon austenitic stainless steel containing 23% Cr, 13% Ni, and 2.5% Mo

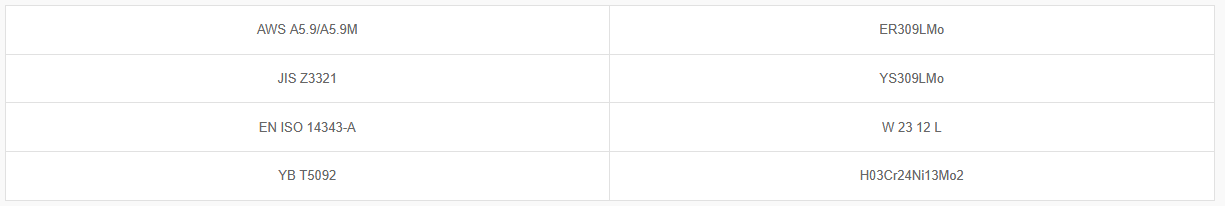

Classification


Application and Features

• KTS-309LMo is a low-carbon austenitic stainless steel containing 23% Cr, 13% Ni, and 2.5% Mo
• The addition of molybdenum enhances resistance to intergranular corrosion and improves high-temperature strength
• Its low carbon content further increases resistance to sensitization
• KTS-309LMo is particularly suitable for dissimilar welding between 316L or duplex stainless steels and carbon steels

Welding Position


Welding Instruction

- Please refer to the GTAW welding guidelines for proper usage

Application
- KTS-309LMo is particularly suitable for dissimilar welding between 316L or duplex stainless steels and carbon steels

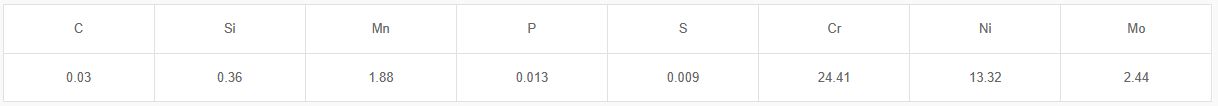

Typical Chemical Composition of Wire (wt%)

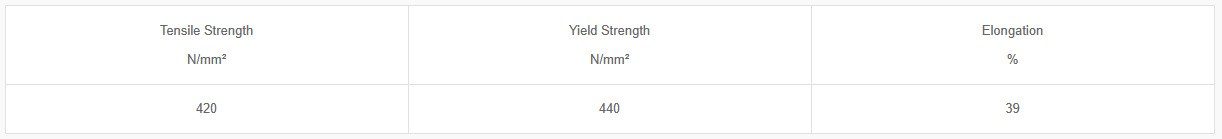

Typical Mechanical Properties of Weld Metal

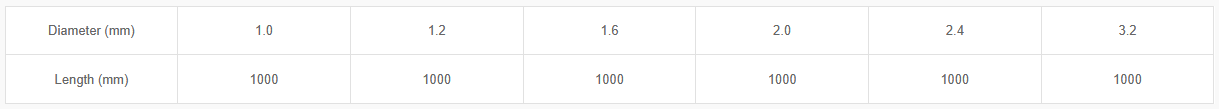

Size and Polarity (DC-)
