Details

---

KTS-316L
Shielding Gas: 100% Ar
KTS-316L is a low-carbon austenitic stainless steel containing 19% Cr, 12.5% Ni, and 2.5% Mo

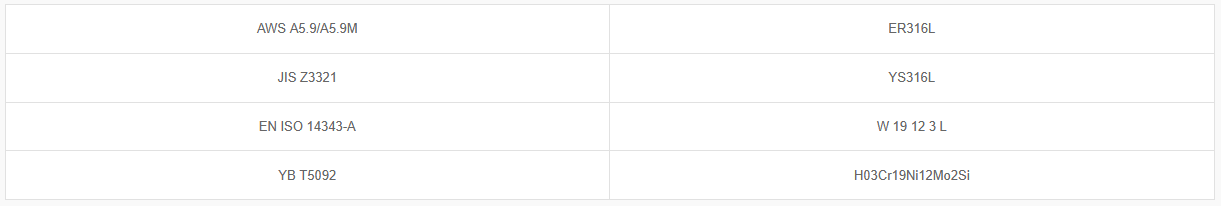

Classification


Application and Features

• KTS-316L is a low-carbon austenitic stainless steel containing 19% Cr, 12.5% Ni, and 2.5% Mo
• With the addition of molybdenum, it offers excellent resistance to pitting corrosion and strong resistance against acetic acid, acetic anhydride, phosphoric acid, and chlorides
• It is suitable for AISI 316L steels, or for welding 13Cr and 18Cr steels without post-weld heat treatment
• KTS-316L is well-suited for welding stainless steels used in chemical processing vessels

Welding Position


Welding Instruction

- Please refer to the GTAW welding guidelines for proper usage

Application
- KTS-316L is well-suited for welding stainless steels used in chemical processing vessels

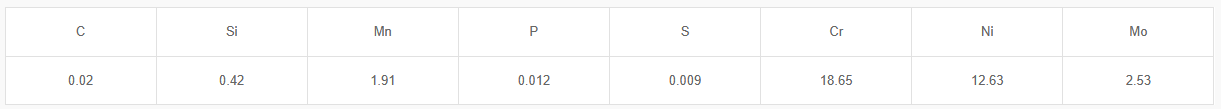

Typical Chemical Composition of Wire (wt%)

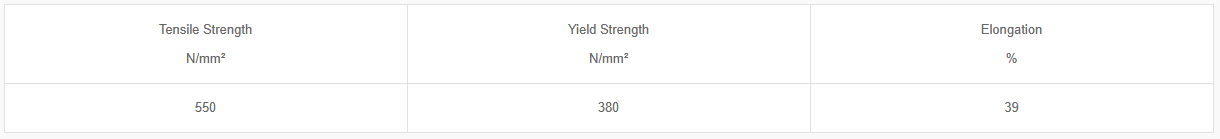

Typical Mechanical Properties of Weld Metal

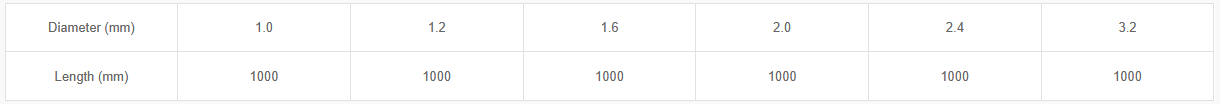

Size and Polarity (DC-)
