Details

---

KFX-70T
Shielding Gas:100% CO₂
KFX-70T is suitable for welding 490N/mm² grade steel with flat and horizontal position.Uniform slag covering, regular weld toes, glossy bead surface and smooth lapping onto the preceding bead in multi-layer fillet welding

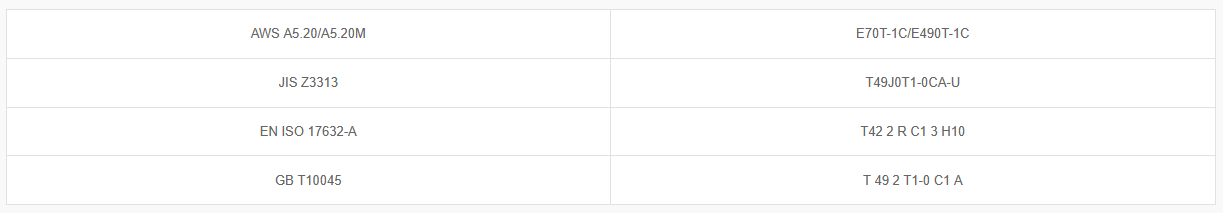

Classification


Application and Features

• KFX-70T is suitable for welding 490N/mm2 grade steel with flat and horizontal position
• High-deposition-rate of multi-layer fillet welding in horizontal and flat position
• High resistance against porosity when welded on primer-coated steel plates
• Uniform slag covering, regular weld toes, glossy bead surface and smooth lapping onto the preceding bead in multi-layer fillet welding
• Ideal for ship-building, tanks, bridges, steel structures and constructions

Welding Position


Welding Instruction
- Please refer to Appendix D

Application
- Ideal for ship-building, tanks, bridges, steel structures and constructions

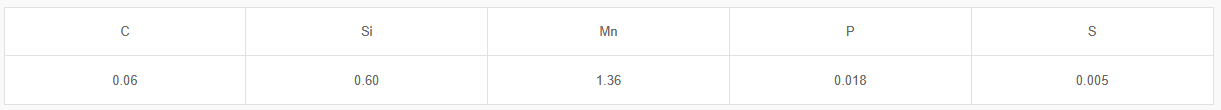

Typical Chemical Composition of Weld Metal (wt%)

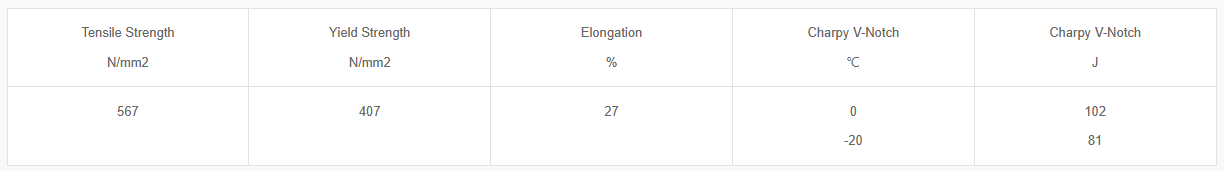

Typical Mechanical Properties of Weld Metal

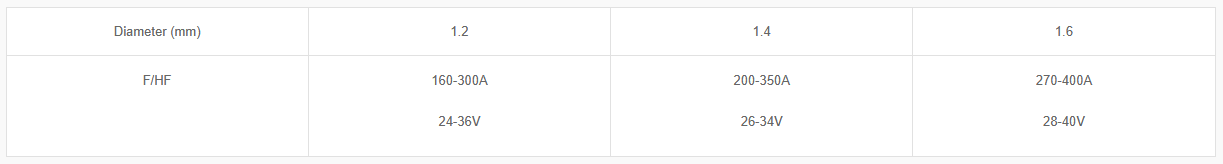

Size and Suggested Operating Range (DC+)
