Details

---

KMS-309L
Shielding Gas: Ar+1~2%O2(CO2)
Weld metal is austenitic structure with 23%Cr-12%Ni
Used for welding dissimilar materials such as mild steel to stainless steel, as well as for a barrier layer in stainless overlays

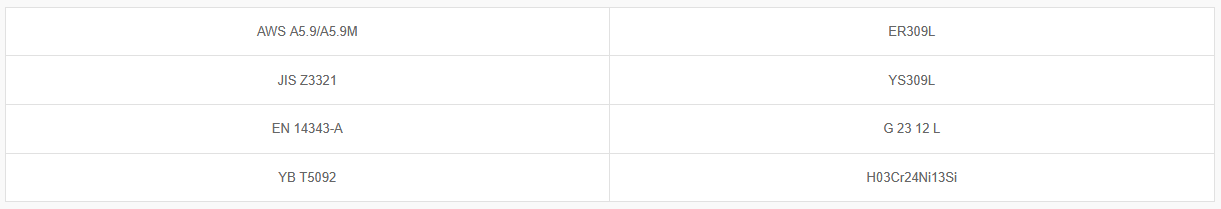

Classification


Application and Features

• Weld metal is austenitic structure with 23%Cr-12%Ni
• Moderate ferrite content increases good crack and corrosion resistance
• 0.02% carbon content increases resistance to intergranular corrosion
• Used for welding dissimilar materials such as mild steel to stainless steel, as well as for a barrier layer in stainless overlays

Welding Position


Welding Instruction

• Use Ar+1~2%O2 for spray transfer and Ar+1~2%CO2 for short-circuit transfer
• For welding dissimilar alloy, please refer to Appendix I
• For other instructions, please refer to Appendix B and F

Application
- Weld metal is austenitic structure with 23%Cr-12%Ni
- Used for welding dissimilar materials such as mild steel to stainless steel, as well as for a barrier layer in stainless overlays

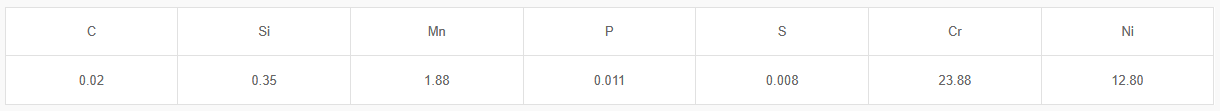

Typical Chemical Composition of Weld Metal (wt%)

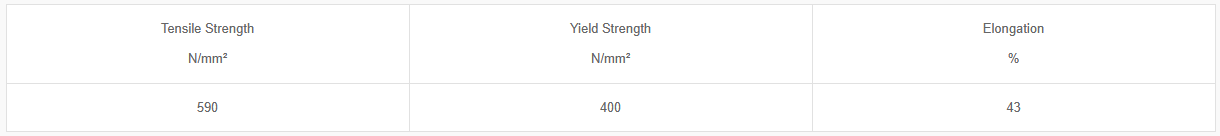

Typical Mechanical Properties of Weld Metal

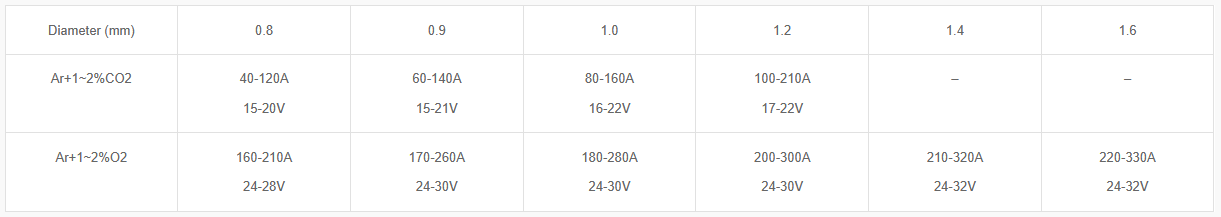

Size and Suggested Operating Range (DC+)
