Details

---

KFT-X316L
Shielding Gas: 100% Ar
KFT-X316L produces slag to protect the reverse side of the root pass from oxidation by the atmosphere and saves the cost for back shielding gases and gas purging downtime including the setting time for gas purging jigs

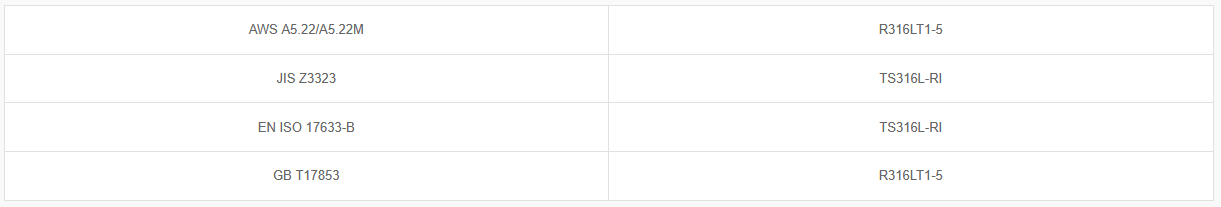

Classification


Application and Features

• KFT-X316L produces slag to protect the reverse side of the root pass from oxidation by the atmosphere and saves the cost for back shielding gases and gas purging downtime including the setting time for gas purging jigs
• Suitable for welding 18%Cr-12%Ni-2%Mo steel (AISI 316, AISI316L)

Welding Position


Welding Instruction

- Formation of key-hole during welding is very important in order to supply slag onto reverse side bead
- The melting rate of flux cored wire is higher than that of solid wire due to flux addition. The speed of wire feeding must be higher
- Only for root pass in single-side welding, not for cover pass

Application
- Suitable for welding 18%Cr-12%Ni-2%Mo steel (AISI 316, AISI316L)

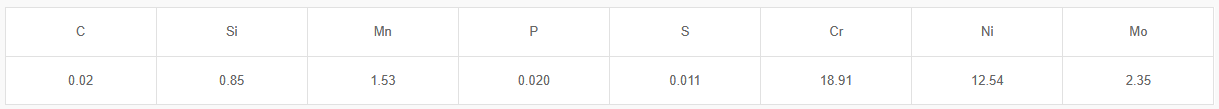

Typical Chemical Composition of  Weld Metal (wt%)

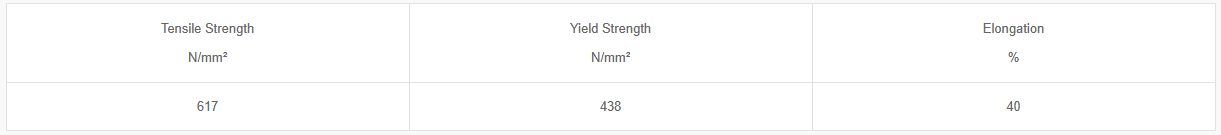

Typical Mechanical Properties of Weld Metal

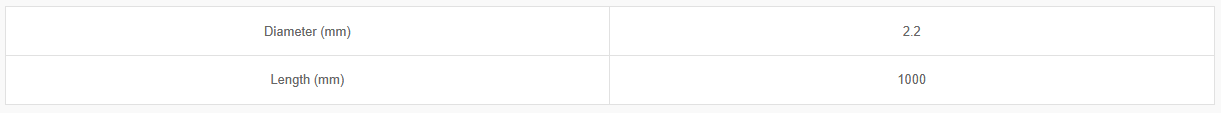

Size and Polarity (DC-)
