Details

---

KMS-309LMo
Shielding Gas: Ar+1~2%O2(CO2)
Weld metal is austenitic structure with 23%Cr-12%Ni-2%Mo
Similar to 309 with the exception for the addition of 2.0 – 3.0% molybdenum to increase its pitting corrosion resistance in halide-containing environments

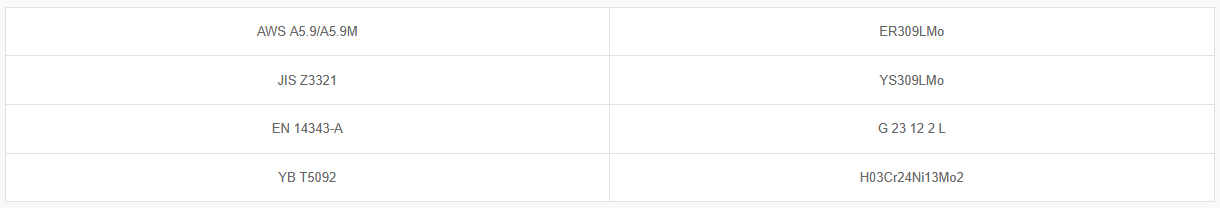

Classification


Application and Features

• Weld metal is austenitic structure with 23%Cr-12%Ni-2%Mo
• Similar to 309 with the exception for the addition of 2.0 – 3.0% molybdenum to increase its pitting corrosion resistance in halide-containing environments
• Used to achieve a single-layer overlay with a chemical composition similar to that of a 316L stainless steel

Welding Position


Welding Instruction

• Use Ar+1~2%O2 for spray transfer and Ar+1~2%CO2 for short-circuit transfer
• For welding dissimilar alloy, please refer to Appendix I
• For other instructions, please refer to Appendix B and F

Application
- Used to achieve a single-layer overlay with a chemical composition similar to that of a 316L stainless steel

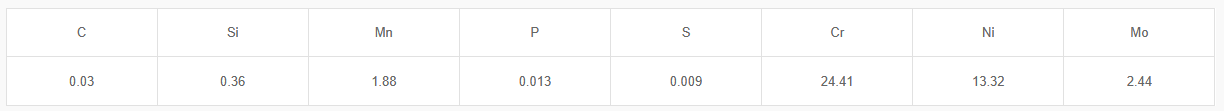

Typical Chemical Composition of Weld Metal (wt%)

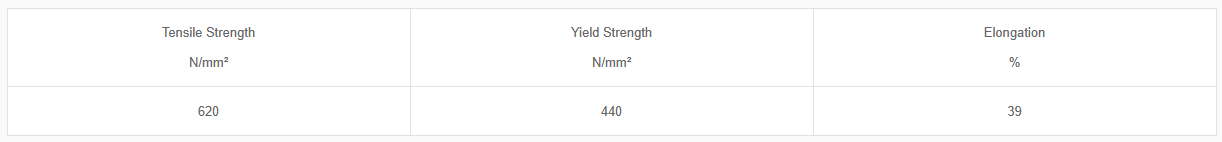

Typical Mechanical Properties of Weld Metal

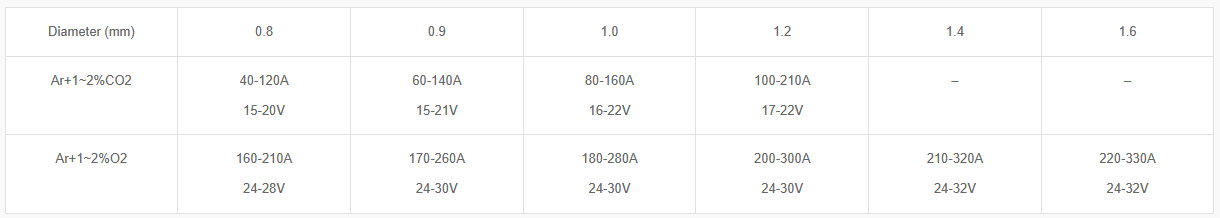

Size and Suggested Operating Range (DC+)
