Details

---

KMS-317L
Shielding Gas: Ar+1~2%O2(CO2)
Weld metal is austenitic structure with low carbon 18%Cr-15%Ni-3%Mo.
such as AISI 316, 316L, 317 and 317L stainless steel

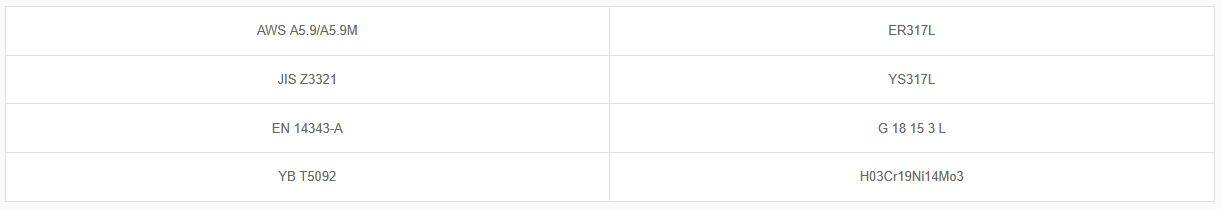

Classification


Application and Features

• Weld metal is austenitic structure with low carbon 18%Cr-15%Ni-3%Mo
• Weld deposit similar to 316L with a high molybdenum content for increased corrosion resistance
• 0.02% carbon content increases resistance to intergranular corrosion
• Ideal for welding critical chemical vessels, such as AISI 316, 316L, 317 and 317L stainless steel

Welding Position


Welding Instruction

• Use Ar+1~2%O2 for spray transfer and Ar+1~2%CO2 for short-circuit transfer.
• For other instructions, please refer to Appendix B and F

Application
- Such as AISI 316, 316L, 317 and 317L stainless steel

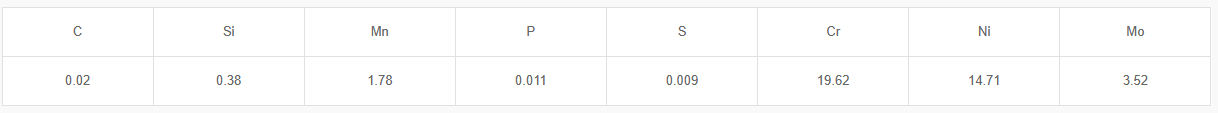

Typical Chemical Composition of Weld Metal (wt%)

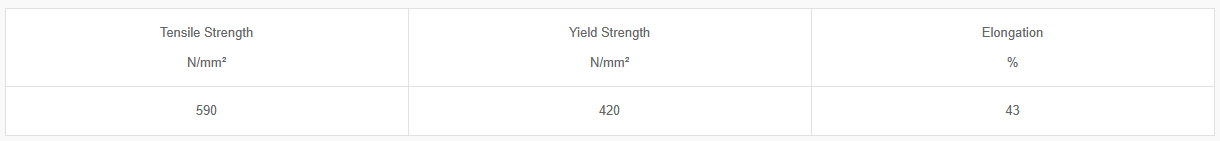

Typical Mechanical Properties of Weld Metal

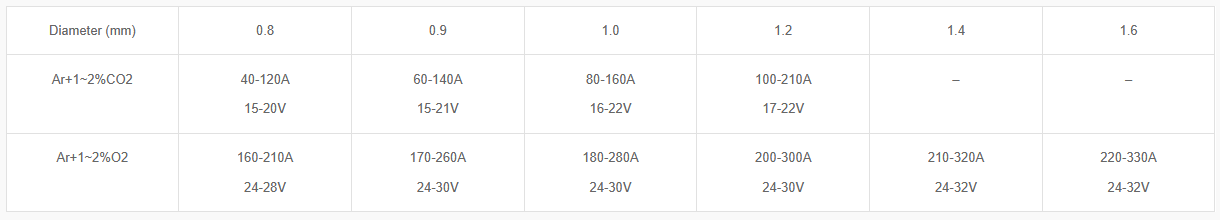

Size and Suggested Operating Range (DC+)
